Application of Nitrogen Generators in the Beer Industry&how to choose nitrogen generator?

I. Core Application Scenarios (Full-process Coverage)

1. Raw Material Storage and Treatment (Anti-oxidation)
   Protection of Malt and Hops: Malt contains phenols and vitamins, while hops are rich in aromatic substances. These components are prone to oxidation when exposed to oxygen, resulting in cardboard-like and stale off-flavors. Nitrogen is injected into malt silos and hop tanks to create an inert atmosphere, preserving the fresh aroma and bitterness.
   Protection of Mashing and Gelatinization Tanks: Purge the air inside the tanks with nitrogen before feeding materials to prevent wort oxidation and retain the authentic malt flavor.
2. Fermentation and Wine Storage (Quality Stabilization & Spoilage Prevention)
   Headspace Protection for Fermentation Tanks: Leave headspace in the tank after fermentation, and fill it with nitrogen to maintain a slight positive pressure (1–3 PSI). This prevents oxygen dissolution, inhibits harmful bacteria and stabilizes flavor.
   Protection for Bright Beer Tanks / Conditioning Tanks: Beer is stored here for days to weeks. Continuous nitrogen blanketing isolates oxygen, extending shelf life and slowing flavor deterioration.
   Yeast Storage Protection: Preserve yeast activity and prevent deactivation caused by oxidation, ensuring stable fermentation for subsequent batches.

   3.Filtration and Conveying (Anti-oxidation & Loss Reduction)
   Inert Gas Protection for Filtration System: Purge equipment and pipelines with nitrogen before filtration. Perform filtration in an oxygen-free environment to reduce oxidation and foam loss. Apply nitrogen back pressure after filtration to prevent air backflow.
   Pump-free Conveying (Gentle Conveying): Use nitrogen pressure (0.2–0.4 MPa) to propel beer instead of centrifugal pumps. This prevents protein damage and foam deterioration caused by shear force, and also avoids oxygen ingress from air leakage at pump seals.

   4.Filling and Packaging (Freshness Retention & Shelf Life Extension)

   Purging and Displacement for Bottles, Cans and Kegs: Before filling, empty containers are purged with high-purity nitrogen (99.9%+) to fully expel air. The residual oxygen level can be reduced to below 50 ppb, preventing oxidation at the source.

   Nitrogen Supplement after Filling and before Capping: Nitrogen is injected into the headspace to lower the oxygen content inside containers. This extends the shelf life to 6–12 months and maintains foam stability.

   Protection for Draught Beer in Kegs: Nitrogen maintains pressure inside kegs to prevent carbon dioxide loss and coarse foam formation. It also blocks oxygen and inhibits bacteria during storage and transportation, keeping the beer smooth in taste with fine and long-lasting foam.

   5.Specialty Beer Brewing (Flavor Shaping & Texture Enhancement)

   Nitro Beer: A blend of nitrogen and CO₂ (typically 70% N₂ + 30% CO₂) creates extremely fine foam with a smooth, velvety texture and long-lasting lacing, featuring a style similar to Guinness.

   Dry Hopping Protection: Nitrogen shielding during dry hopping prevents the oxidation and loss of hop aroma, enhancing the intensity and freshness of hop flavors.



   II. Common Nitrogen Purity Levels and Selection

   High purity (99.9%–99.999%): Used for filling purging, bright beer tank protection and specialty beer production. PSA nitrogen generators (carbon molecular sieve type) are recommended.

   Medium purity (95%–99.5%): Applied to fermenter headspace protection, pipeline purging and conveying power supply. Membrane separation nitrogen generators are available for selection, featuring compact structure and quick start-up.

   Key indicators: Dew point ≤ -40℃, oil-free and sterile (food-grade filtration with 0.2μm sterilization).

   III. Core Advantages (Compared with Traditional Liquid Nitrogen / Gas Cylinders)

   Quality Improvement: Zero oxidation, consistent flavor, fine and smooth foam, and a 30%–50% extension of shelf life.

   Cost Reduction: On-site nitrogen generation eliminates the need for purchasing, transporting and renting gas cylinders. Its energy consumption cost is 35%–42% lower than that of liquid nitrogen, with a typical payback period of less than 2 years.

   Safety & Environmental Friendliness: Free from risks associated with high-pressure gas cylinders, no carbon emissions from transportation and no waste liquid generated, complying with food-grade hygiene standards.

   Stability & Reliability: Capable of continuous gas production 24 hours a day with stable gas purity and pressure, preventing production shutdowns caused by gas supply interruptions.

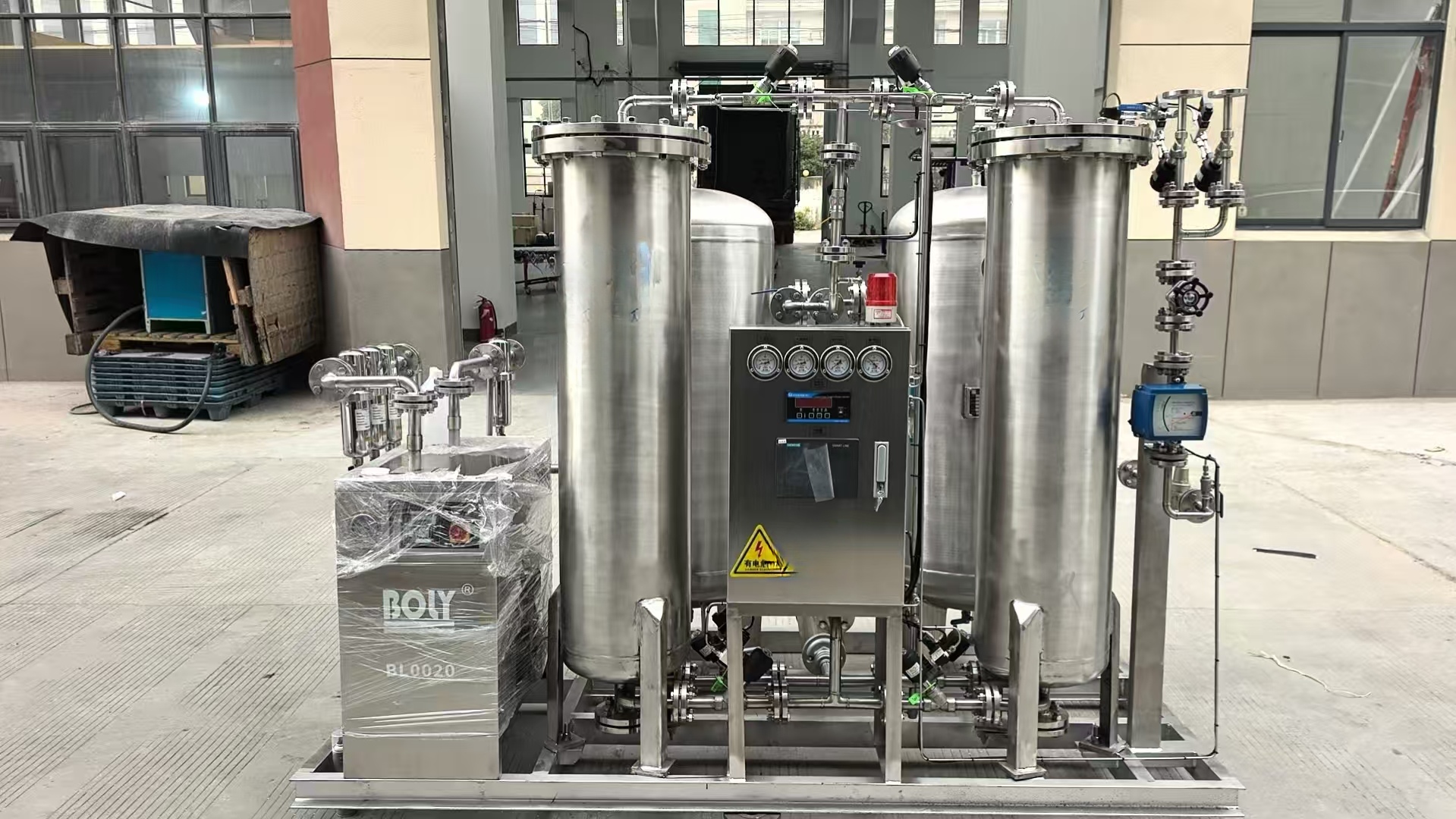

   IV. Reference of Typical Configurations (PSA Nitrogen Generator)

   Small-scale Craft Brewing (1–5 t/h): 5–20 Nm³/h, 99.9% purity, 316L stainless steel pipelines and food-grade filtration.

   Medium-sized Breweries (10–50 t/h): 30–100 Nm³/h, 99.99% purity, equipped with nitrogen buffer tank and on-line oxygen analysis system.

   Large Brewery Groups (100 t/h and above): 150–500 Nm³/h, 99.999% purity, multi-unit parallel connection and DCS system linkage.
